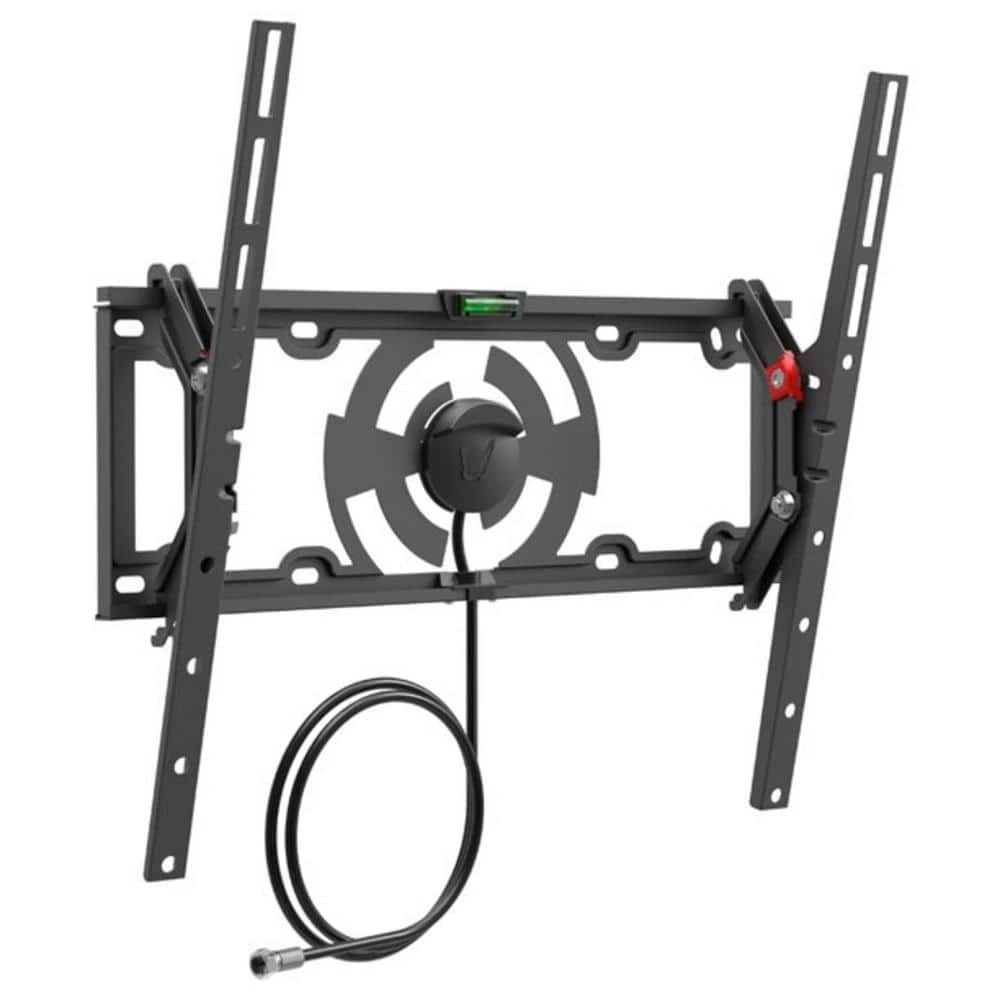

The mount is suitable only for inner and outer walls built of drywall with wooden studs. The Barkan tilt TV mount with integrated HDTV indoor antenna fits flat / curved screens sizes 19 in. to 65 in. and weight up to 110 lbs. The large mass of metal in the mount creates a better reception for the HDTV antenna. The mount features a US and China patented auto-locking mechanism to prevent disengagement of the screen, with 2 hanging points in each side and without wires and moving parts that might break. It allows tool free tilt from 0 till 15 degrees. The distance from the wall is 2.6 in. The mount fits TVs with VESA (Bracket Mounting Holes Patterns) 75X75, 100×100, 100×200, 200×100, 200×200, 300×300, 300×400, 400×200, 400×300, 400×400 mm and non VESA up to 400×400 mm. The built-in coaxial cable connects to a Smart TV or a decoder. The mount has a lifetime warranty, the integrated antenna has 2-year warranty and its color is black. Please check the list of included screen-connection screws in the assembly instructions.
- Eliminates the trouble of using 2 separate devices and creates a clean look
- Supported frequencies: 174-230MHz, 470-862MHz, fits all free HDTV broadcast signals (ABC, CBS, NBC, Fox, The CW, PBS and more)

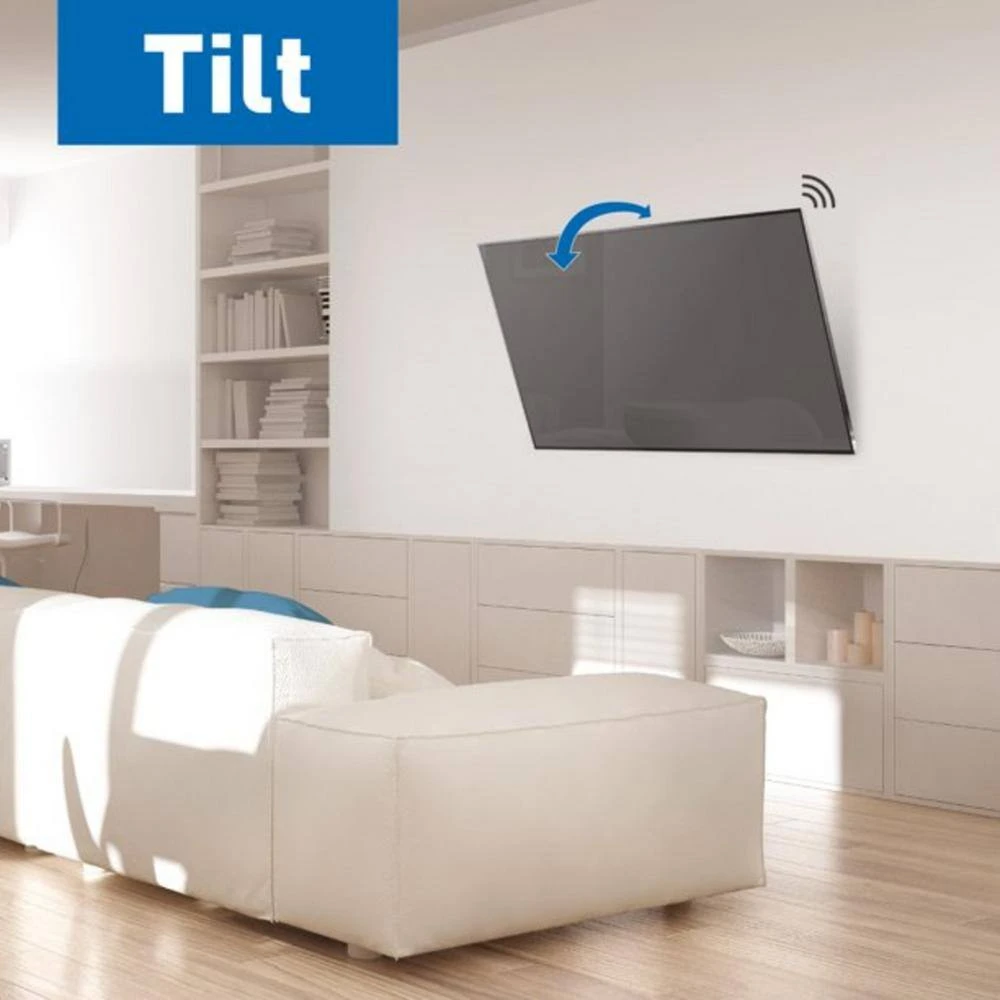

- Touch and tilt – tool free tilt adjustment
- Product was tested with 4-times its declared weight
- Patented auto-locking mechanism prevents screen disengagement
