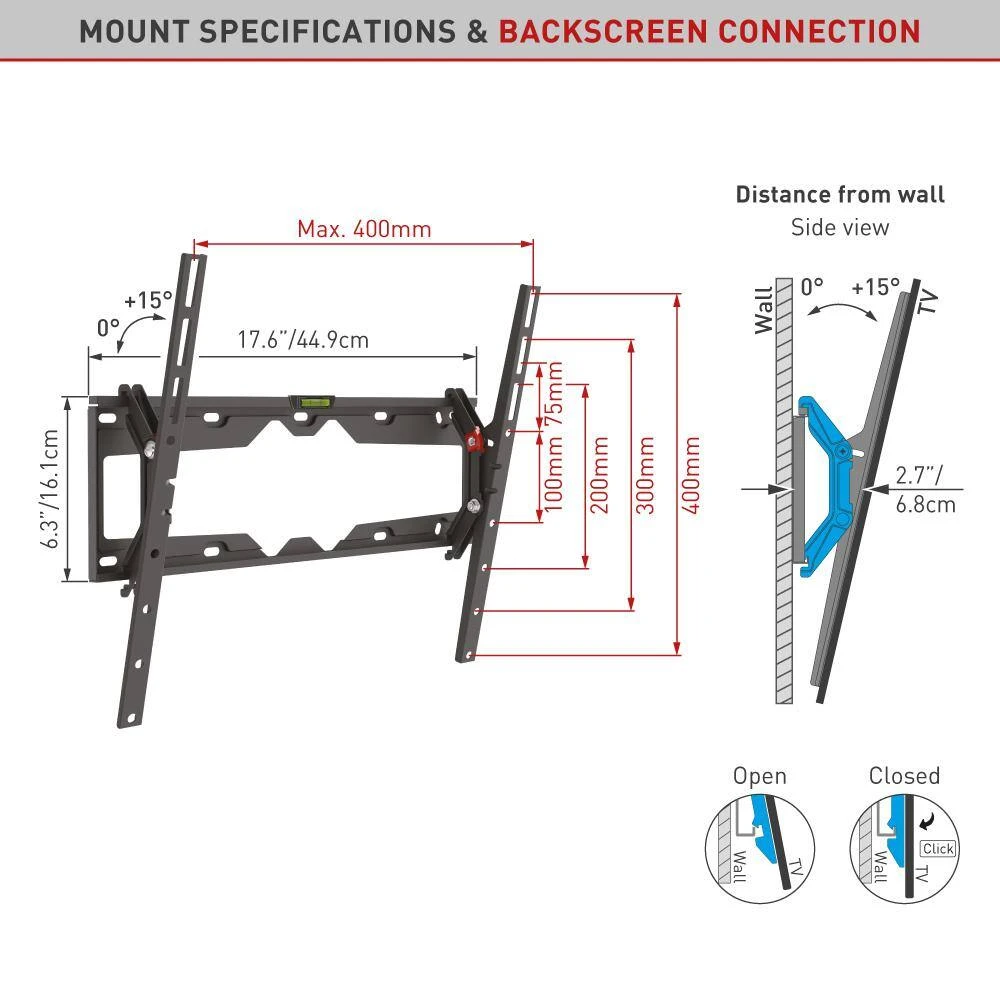

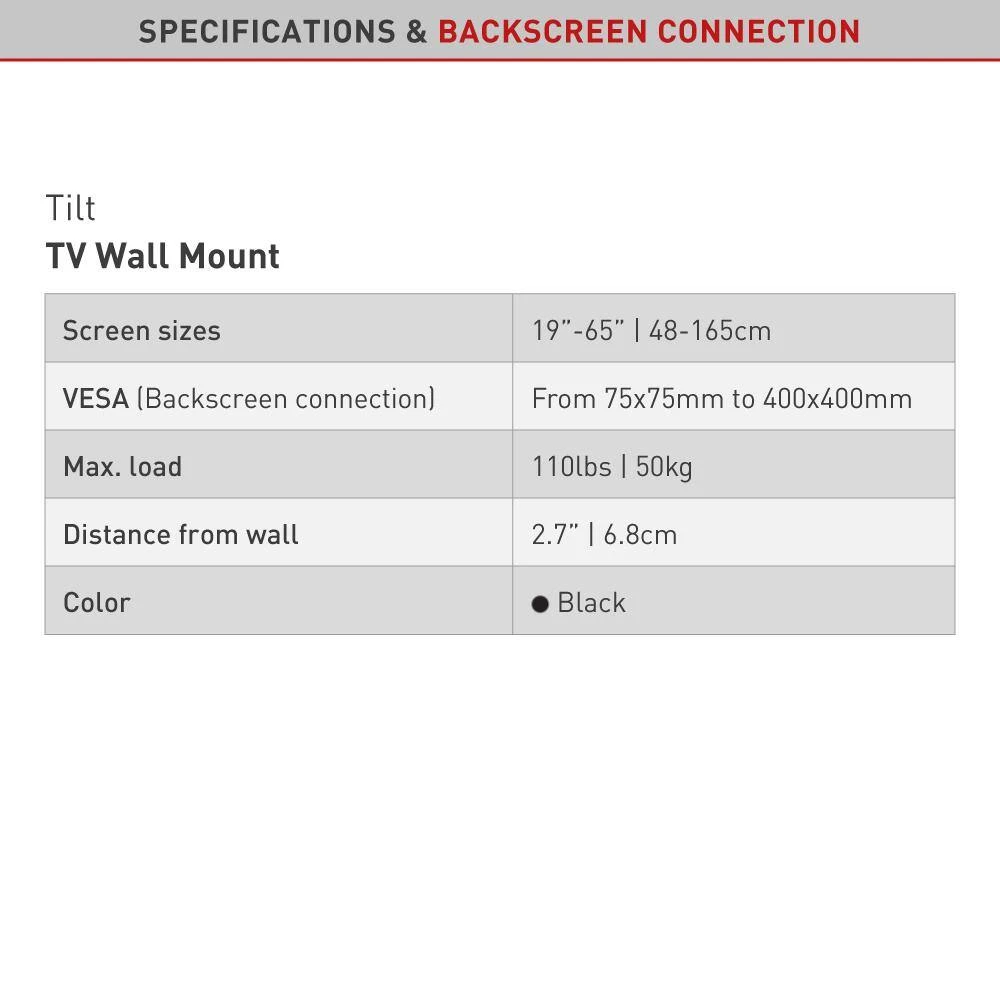

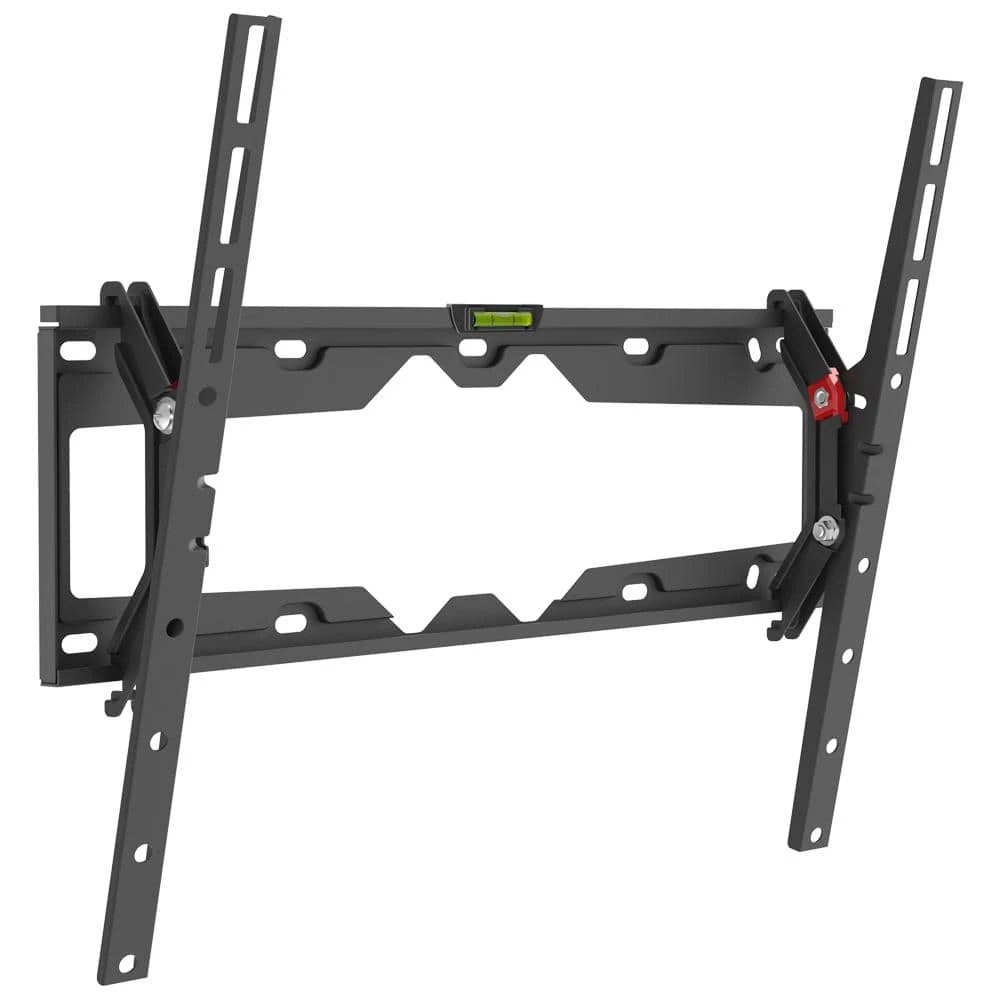

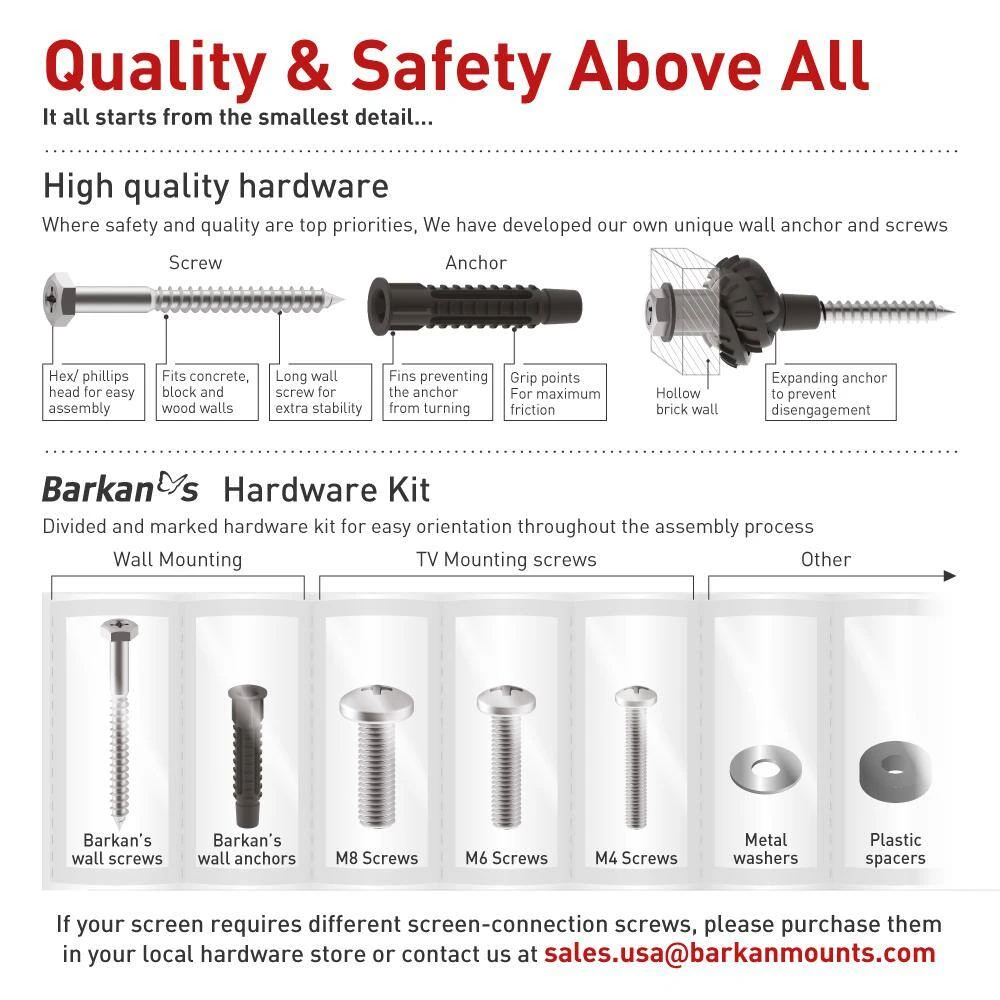

The Barkan tilt wall mount fits flat / curved screens sizes 19 – 65 inches / 48cm – 165cm and weight up to 110lbs / 50kg. The mount features a US & China patented auto-locking mechanism to prevent disengagement of the screen, with 2 hanging points in each side and without wires and moving parts that might break. It allows tool free tilt from 0 till 15°. The distance from the wall is 2.6 in. / 6.6cm. The mount fits TVs with VESA (Bracket Mounting Holes Patterns) 75X75, 100×100, 100×200, 200×100, 200×200, 300×300, 300×400, 400×300, 400×400 mm and non VESA up to 400×400 mm. It has a lifetime warranty and its color is black. Please check the list of included screen-connection screws in the assembly instructions. If your screen requires different screen-connection screws, please purchase them in your local hardware store or consult us at [email protected]. We encourage you to leave a product feedback. If you have any issues with the product please contact us.

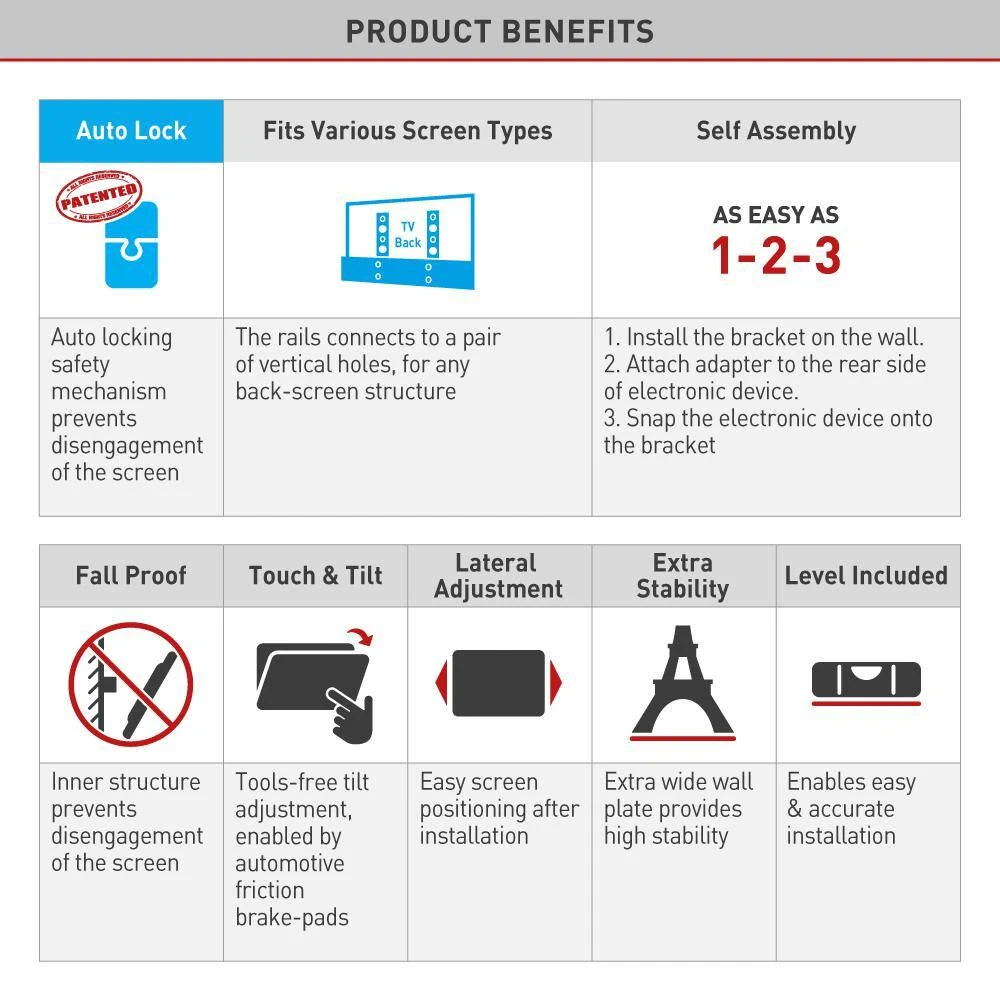

- Self-assembly – 1. install the bracket on the wall, 2. attach adapter to the rear side of electronic device, 3. snap the electronic device onto the bracket

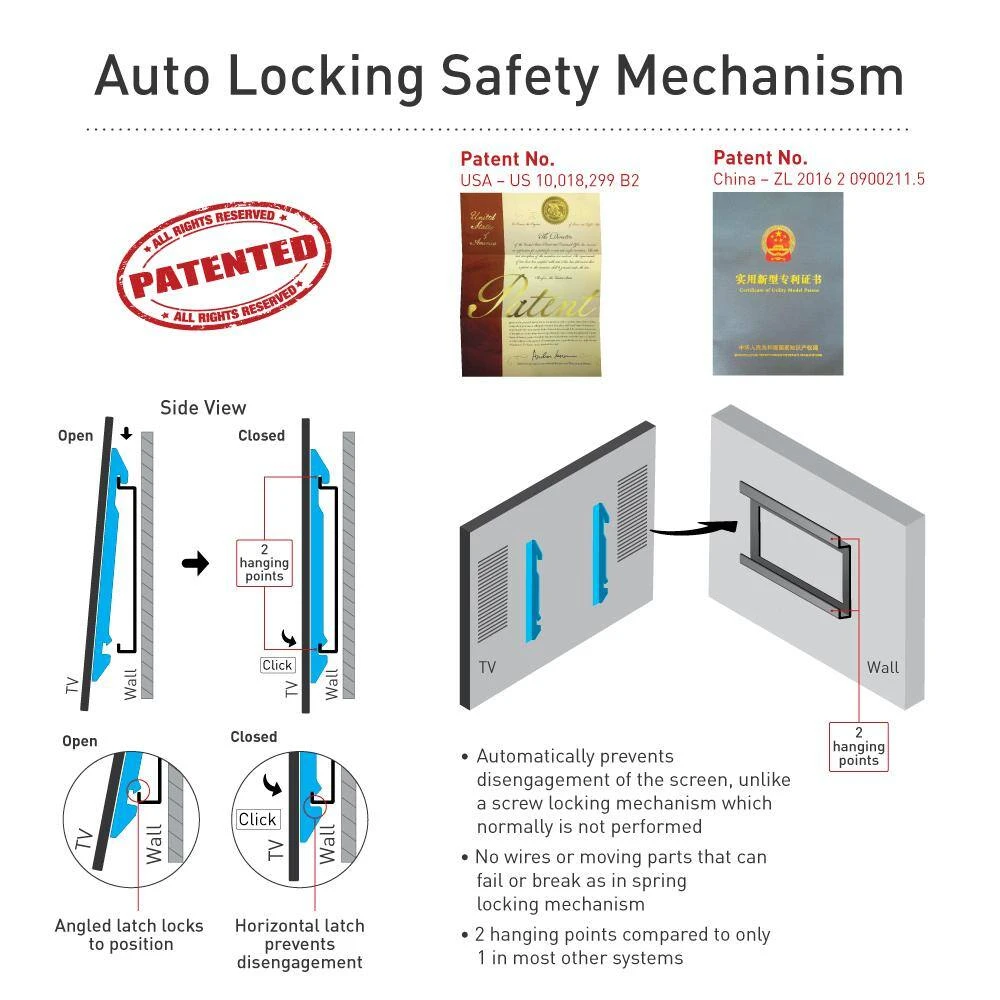

- Fall proof – inner structure prevents disengagement of the screen

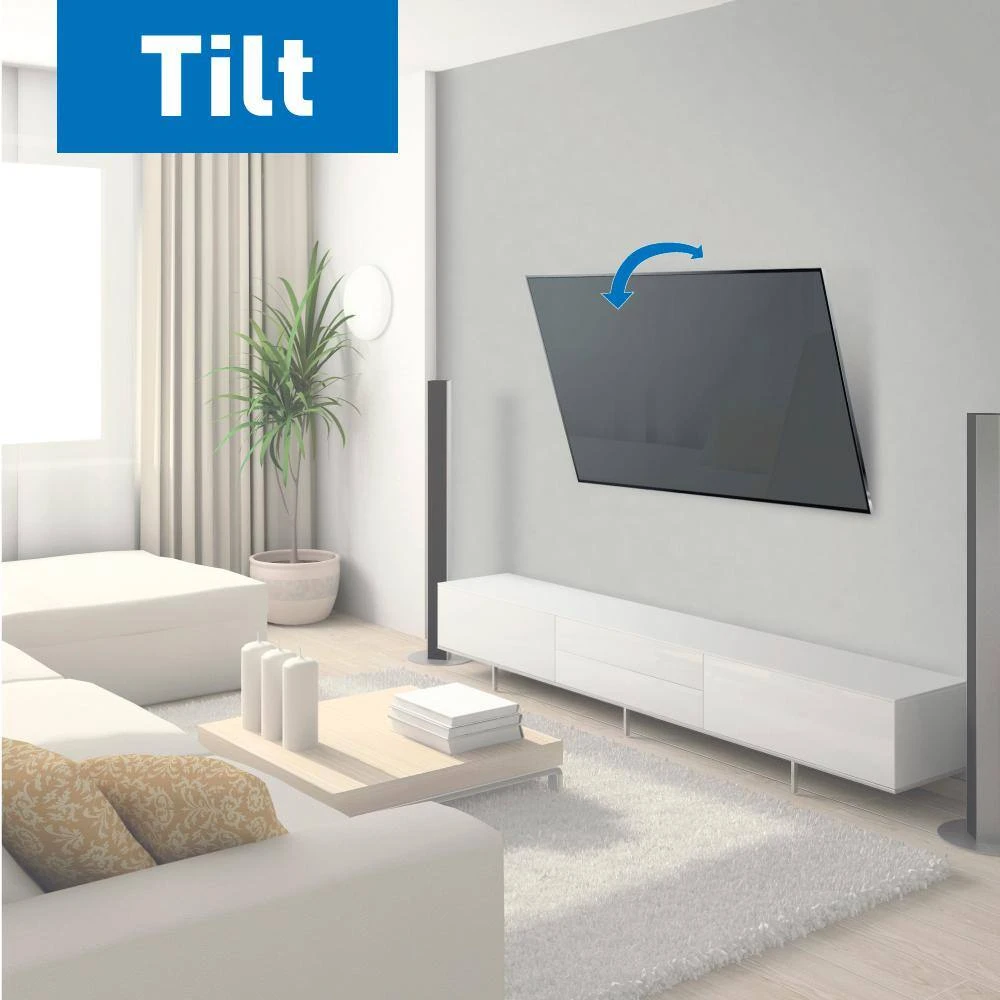

- Touch and tilt – tool free tilt adjustment
- Bubble level included – enables easy and accurate installation
- Compatibility to larger screen size applies for TVs with weight capacity and VESA pattern specified above
- Product installation – please make sure to follow the assembly instructions precisely. If you have any questions contact us at https://www.barkanmounts.com/support
