12/2 Solid 16/2 Solid x 250 ft. MC-PCS Duo Power and Control/Signal Cable by Southwire

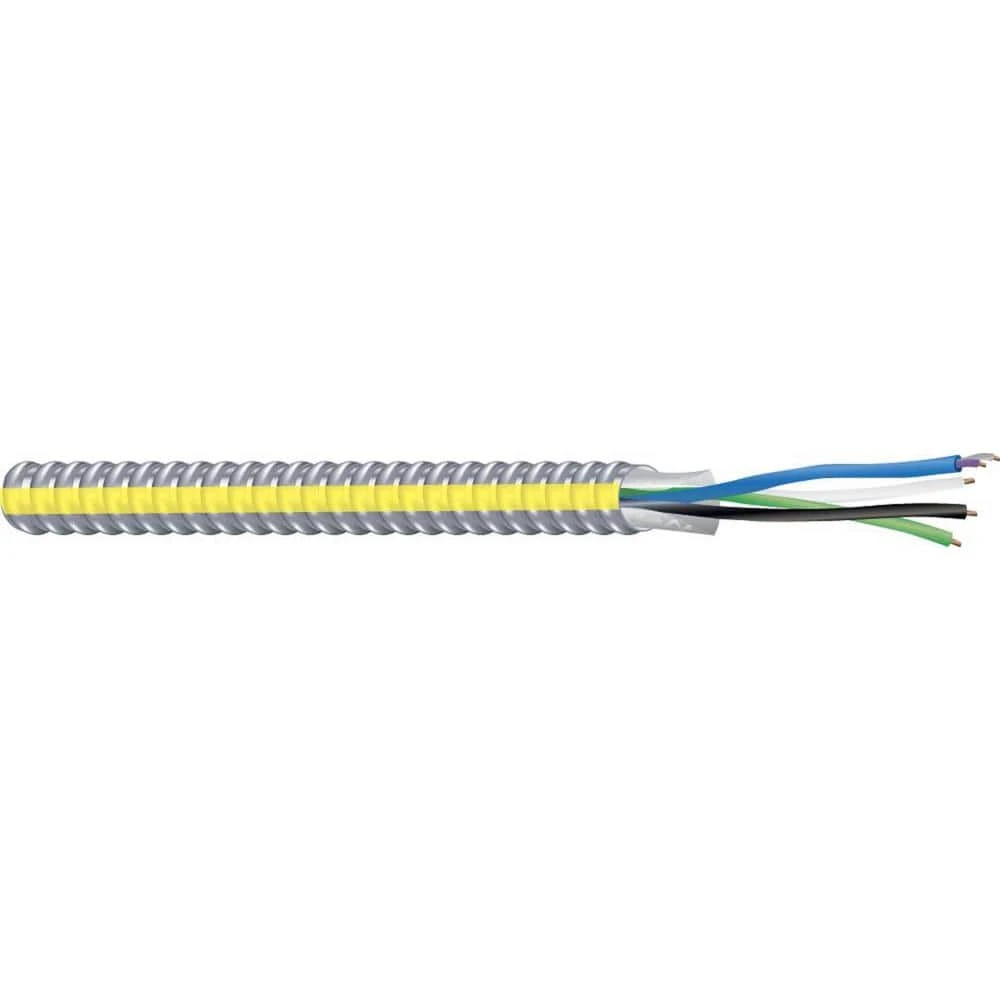

Southwires MC-PCS Duo is suitable for use as circuits for branch power distribution in commercial, industrial, institutional and multi-residential buildings as well as power, lighting, control and signal circuits. It works with LED lighting with 0-10V dimming. This cable is constructed with 12 AWG CU Type THHN/THWN power and ground conductors along with a control conductor assembly composed of a 30 mil PVC jacket covering two 16 AWG CU Type TFN control conductors. The phase conductors, ground and control conductor assembly are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the taped assembly. Yellow stripe/blocks are printed on the outside of the armor and the print legend is applied in black print on every 4th yellow stripe/block.

• Brand received (Cerrowire or Southwire) varies by zip code
• Circuits for branch power distribution in commercial, industrial, institutional and multi-residential buildings
• Power, lighting, control and signal circuits
• Commonly used as luminary cable in LED lighting with 0-10V dimming
• Fished or embedded in plaster and Concealed or exposed installations
• Cable meets the NEC and UL listing requirements for combining power/lighting circuits and Class 2 or Class 3 signal or control circuits in the same cable
• Lightweight Aluminum Interlocked Armor
• Green Copper THHN Insulated Ground
